iPAK

Medium Frequency DC Inverter Controls

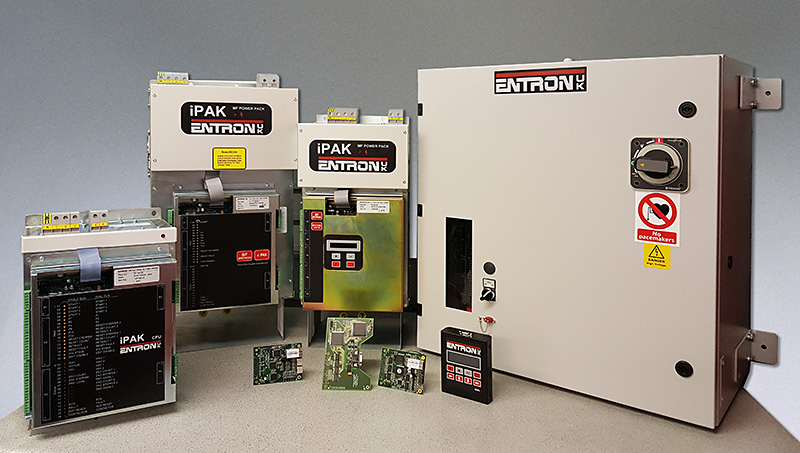

iPAK is an integrated timer/controller/inverter system for MF resistance welding. The control section is housed in a cassette-type casing, which simply mounts onto the power pack for ease of maintenance. Millisecond precision, constant current and constant power operation, with comprehensive monitoring, assures weld quality.

Capacidades

• Current/Power Monitoring: High/Low limits and Pre-limit
• Proportional valve controller (0-10 V or 4-20 mA)
• Pressure Monitoring: High/Low limits
• Up to 3 analog inputs (2 x 0-10 V, plus 1 x 0-10 V or 4-20 mA)
• High Current Output configurations – up to 300 kA weld current capability, higher on special applications

Opciones

• Constant Voltage regulation / Constant Power
• Isolation Contactors
• Fieldbus Interfaces – InterBus-S, Profibus DP and DeviceNet
• Plug-in option board provides 10/100Base-T Ethernet connection
• ELR/1 Earth-leakage Relay
• ELCR/1 Machine Protection Device
• I/O Expansion
• WSP3 hand-held Programming Pendant

Prestaciones

• Spot / Repeat / Roll-spot / Seam (dual heat) / Seam (preheat)
• Pulsation, Upslope and Downslope
• Dual weld intervals per program (Preheat and Weld)
• 64 programs (internal or external selection)
• Constant Current regulation
• Programmable blocking on fault
• Weld Log keeps history of recent welds
• Programmable outputs (events)
• Retract/High-lift control
• Single or dual gun operation
• OHMA (Air over Oil) gun operation
• Machine Sequencer Logic
• Linked weld programs for multiple spot sequences

Software

• WS98-iPAK PC Programming Software – networking, calibration, monitoring, data logging
